🚀 UNDERSTANDING SQL JOINS

Introduction

In relational databases, combining data from multiple tables is a common requirement. SQL provides several types of joins to retrieve data based on the relationships between these tables. In this article, we'll break down the different types of SQL joins, how they work, and when to use them.

What is a Join?

A join is a SQL operation that allows you to combine data from two or more tables based on a related column between them. The tables involved must have at least one field (column) in common, which forms the basis of the relationship.

Types of SQL Joins

There are four main types of SQL joins:

1. INNER JOIN
2. LEFT JOIN (LEFT OUTER JOIN)
3. RIGHT JOIN (RIGHT OUTER JOIN)
4. FULL JOIN (FULL OUTER JOIN)

We'll explore each of these with examples.

1. INNER JOIN

An INNER JOIN returns only the rows where there is a match between the two tables. If a row in one table does not have a corresponding row in the other, it will not appear in the result set.

Example:

SELECT employees.name, departments.department_name
FROM employees
INNER JOIN departments
ON employees.department_id = departments.department_id;

This query retrieves the names of employees and their corresponding department names, but only for employees who are assigned to a department.

2. LEFT JOIN (LEFT OUTER JOIN)

A LEFT JOIN returns all the rows from the left table (the first table in the query) and the matched rows from the right table. If there is no match, the result will contain NULL for columns from the right table.

Example:

SELECT employees.name, departments.department_name
FROM employees
LEFT JOIN departments
ON employees.department_id = departments.department_id;

This will return all employees, even those who are not assigned to any department. If there is no match, NULL will be shown for the department name.

3. RIGHT JOIN (RIGHT OUTER JOIN)

A RIGHT JOIN is the opposite of a LEFT JOIN. It returns all the rows from the right table and the matched rows from the left table. If no match is found, NULL will appear for columns from the left table.

Example:

SELECT employees.name, departments.department_name
FROM employees
RIGHT JOIN departments
ON employees.department_id = departments.department_id;

This query returns all departments, including those that have no employees. For departments without employees, NULL will appear in the employee name column.

4. FULL JOIN (FULL OUTER JOIN)

A FULL JOIN returns all records when there is a match in either the left or right table. It combines the results of both LEFT JOIN and RIGHT JOIN, returning NULL for unmatched rows in either table.

Example:

SELECT employees.name, departments.department_name
FROM employees
FULL OUTER JOIN departments
ON employees.department_id = departments.department_id;

This will retrieve all employees and departments, even if they have no matching row in the other table.

Visual Representation

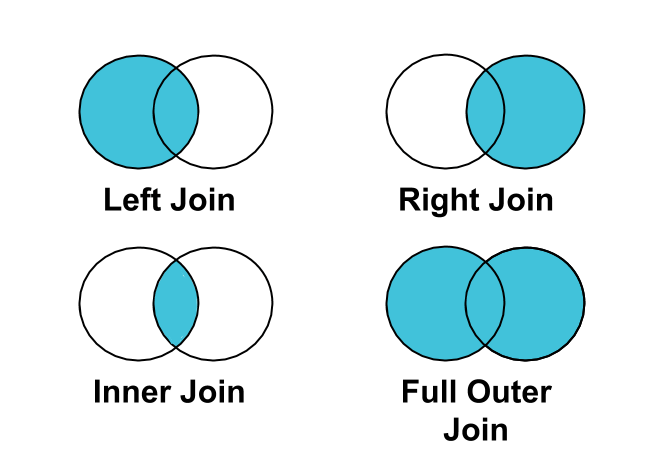

It can be helpful to visualize SQL joins using Venn diagrams:

• INNER JOIN: The intersection of two circles.
• LEFT JOIN: All of the left circle, with the intersection of both circles.
• RIGHT JOIN: All of the right circle, with the intersection of both circles.
• FULL JOIN: The union of both circles.

Practical Use Cases for SQL Joins

• INNER JOIN is used when you only want matching records from both tables, such as orders and customers where each customer has placed an order.
• LEFT JOIN is useful when you want all records from one table and only the matching records from another, such as when showing all employees and their departments, even if some employees aren’t assigned a department.
• RIGHT JOIN can be used to display all the departments, even those without employees.
• FULL JOIN is helpful when you want to retrieve all data from both tables, even if some data doesn’t match, like showing all products and their sales, even if some products haven’t been sold.

Conclusion

Understanding SQL joins is essential for anyone working with relational databases. Knowing when to use each type of join will help you retrieve the data you need efficiently and correctly. Whether you're looking for exact matches, or need to include non-matching records, SQL joins provide the flexibility you need for effective querying.
